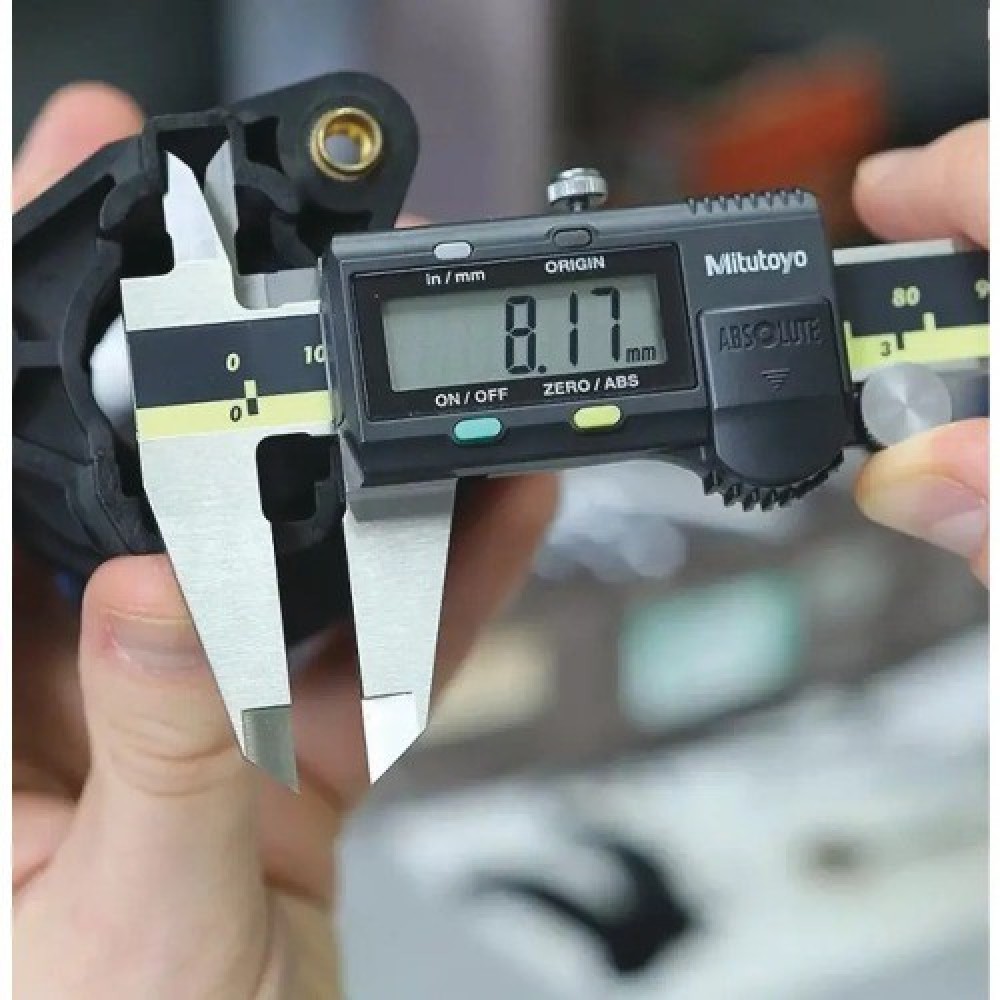

The Mitutoyo 500-160-30 ABSOLUTE Digimatic Caliper has the following specifications:

• Range: 0-6″/150mm

• Resolution: .0005″/0.01mm

• Repeatability: .0005″/.01mm

• Accuracy: +/- .001″

• Remarks: Carbide Tipped ID & OD Jaws

• SPC Output: No

We are pleased to announce the new Mitutoyo ABS Digimatic Caliper line with exclusive AOS sensor technology. The patented Advanced Onsite Sensor (AOS) offers improved measurement dependability by increasing resistance to harsh workshop conditions.  Mitutoyo’s absolute Digimatic caliper sis the next generation of electronic calipers.  The caliper keeps track of of the origin point once it is set.  When turned on, the large LCD displays the actual slider position and is ready to being measuring with.  With the absolute encoder technology, there is no need for users to continually have to set zero on the caliper.  With the new Mitutoyo absolute digimatic calipers, there is no more concern for over-speed errors as some have seen with lesser quality electronic calipers.  The high quality guide surface finish ensures for smooth slider movement along the scale.

Features:

• Available in Inch/Metric or Metric Only models

• Available with or without SPC output capabilities

• Carbide-tipped jaws are available

• Thumb roller included only on calipers up to and including 12″/300mm models

• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated

• Stainless steel construction protects caliper components and ensures accurate performance for longer duration

• SPC output function allows for quick and easy data management in real time

• Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion (on inch/metric models only)

• Alarm: Low Voltage, counting value composition error

• Supplied in a fitted plastic case (40″/1000mm model is supplied in a wooden case)

The Mitutoyo 500-160-30 ABSOLUTE Digimatic caliper is the next generation of electronic calipers. This caliper delivers highly accurate, four-way measurement capabilities with wide measurement ranges available (up to 1000mm/40”). The Mitutoyo ABSOLUTE digimatic caliper delivers accurate, repeatable outside dimension, inside dimension, depth and step measurements with accuracy and unrestricted speed. The caliper’s slide and jaws are constructed of hardened stainless steel with optional carbide-tipped jaws available. The impact-resistant, easy-to-ready LCD display is highly durable and provides large character height (9.0mm in height) which improves readability.

Technical Data:

• Technology: Digimatic

• Max Response Speed: Unlimited

• Display: LCD

• Battery: SR44 (1 pc.) 938882

• Battery life: Approx. 5 years under normal use

• Length Standard: ABSOLUTE electromagnetic induction type linear encoder
